< < Return HGTJ401-TJ302/HGTJ401-TJ402 dispensing machine
HGTJ401-TJ302/HGTJ401-TJ402 di
  • HGTJ401-TJ302/HGTJ401-TJ402 di

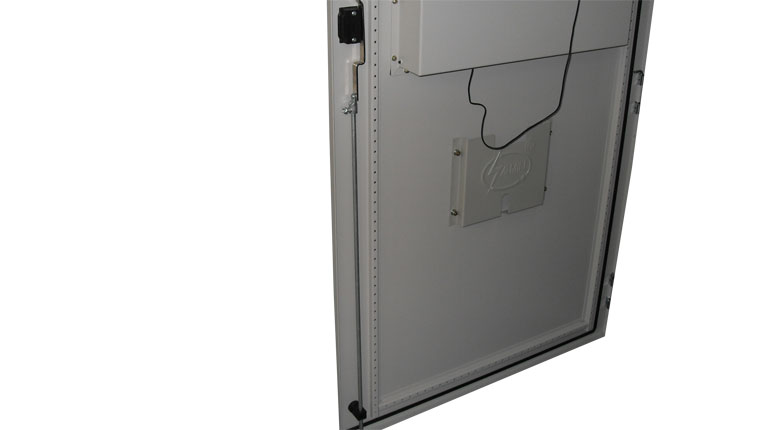

  • dispensing machine for Cabinet
  • dispensing machine for Cabinet

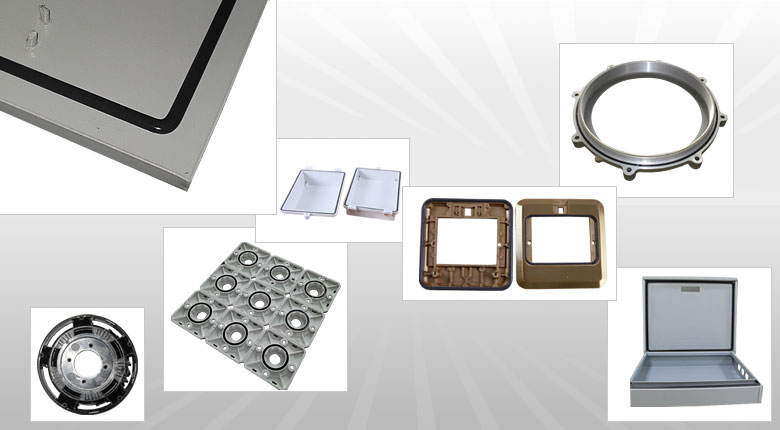

HGTJ401-TJ302/HGTJ401-TJ402 dispensing machine mainly used for CNC PU Seal Pouring products and parts of electric power, electrical equipment, automobile, home appliances, building materials and other industries,where need to be sealed.

Germany Beckhoff dispensing operating system, hardware failure rate is lower;
Operation interface is indicated in both Chinese and English; if there is any need, other languages can be added. The system boasts functions such as false operation reminding, idiot-proof protection, overpressure alarming, temperature alarming and low material level reminding.

When operating the human-machine interface, the operator only needs to enter commands in the interface such as Confirm and
”Start"for loading and unloading of workpieces, and then the equipment can automatically complete the required function operations.

The control system is CNC2013 control system independently researched and developed by the Company. It can control multiple axes simultaneously and control dispensing speed and glue flow, with multi-formula storage function, pressure alarming function, etc. which makes it safer and user-friendly.
The dispensing valve and mixer match with each other well, easy to operate and convenient for maintenance.
Two components metering pump can choose Domestic pump or Germany pump according to customer demand.

Parameters

Cantilever

Structure

Equipment

Model

X,Y,Z Effective

Stroke

Amount of

Output

Glue Strip

Width

Cleaning

Method

Application

Conventional

Equipment

HGTJ401-TJ302

2200mmx 1200mm

-190mm

1-4.0g/s
8-30mm

High-pressure

Water Cleaning

/

Environmental
PU cleaner

Cabinets
