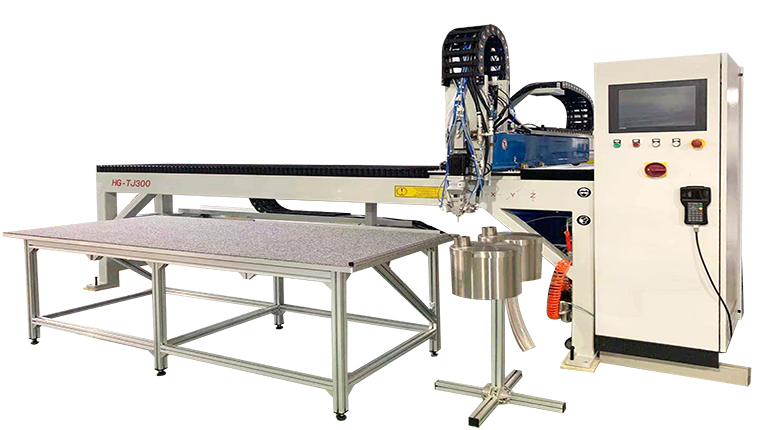

< < Return HGTJ401-TJ300 dispensing machine
i.	HGTJ401-TJ300 dispensing ma
  • i.	HGTJ401-TJ300 dispensing ma
  •  dispensing machine

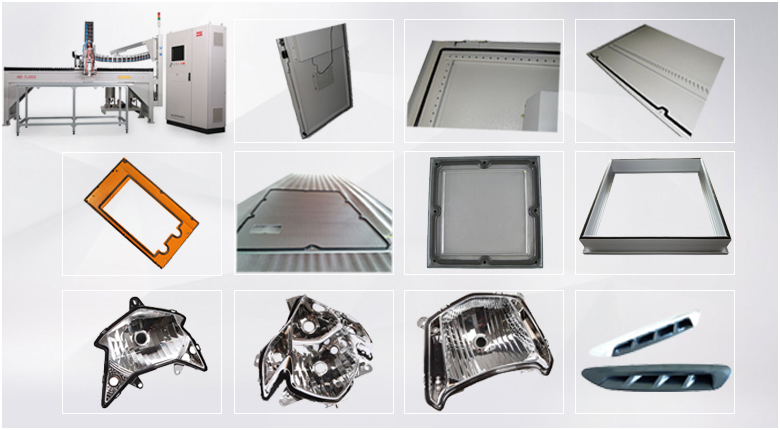

HGTJ401-TJ300 dispensing machine mainly used for pu foam sealing products and parts of electric power, electrical equipment, automobile, home appliances, building materials and other industries,where need to be sealed.


High performance trajectory motion control card, CPU main frequency is as high as 1GHZ, with 20μs control cycle. Buffer register structure, makes no interval between the connection of continuous motion instruction. It has a buffer register structure, so that there is no time interval between continuous motion instructions. Strong real time processing capability, the excellent trajectory planning and speed foresight function make the continuous trajectory motion more faster and smoother. Excellent in high speed and high precision control;
15″ color screen equipped both Chinese and English interfaces, which can be mutually changed if needed and other languages can be added as required;
HMI control system designed for programming, diagnostics and procedures monitoring; after the operator inputs operating instructions in the interface the device is able to perform required functional operations automatically;
After setting, the process control parameter, trajectory parameter and other parameters will be stored in control system;
Featuring with misoperation reminder, error and mistake proofing measures, overpressure alarms, temperature alarms, and low material level reminding functions;
Two-dimensional differential complement operation; multiple drawing methods supported.

Cantilever

Structure

Equipment

Model

X,Y,Z Effective

Stroke

Amount of

Output

Glue Strip

Width

Cleaning

Method

Application

Conventional

Equipment

TJ300

2200mmx 1200mm

-190mm

1-4.0g/s
8-30mm

High-pressure

Water Cleaning

/

Environmental
PU cleaner

Cabinets
