ESOLEITE  WARM EDGE SPACER

ESOLEITE WARM EDGE SPACER

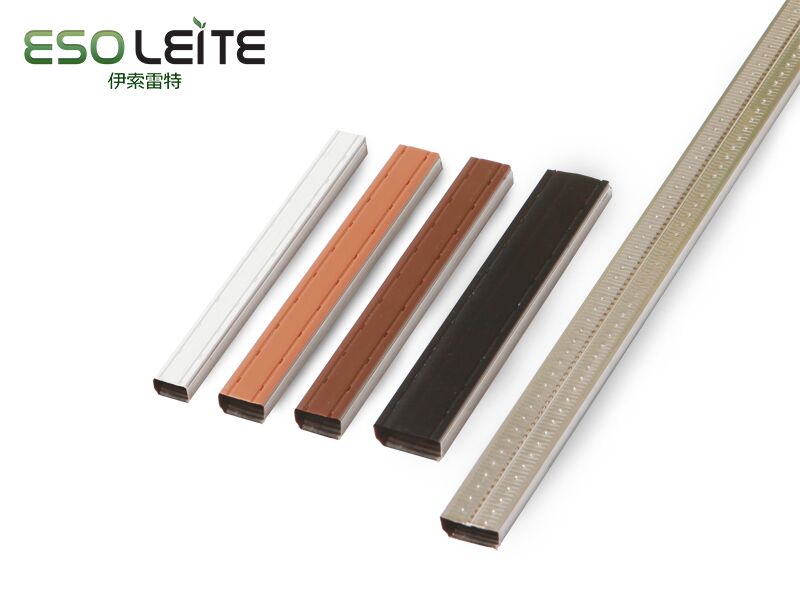

Esoleite spacer has two main products, stainless steel or stainless steel and plastic composite products.

Insulation and energysaving

Low thermal conductivity of stainless steel, or non-llic insulation materials with a thickness of0.1mmstainless steel profile perfect composite,

Making the thermal conductivity is only approx. 7%-2% comparing with the traditional aluminum spacer, the overall window Uw is between 0.1-0.2w/k.

Significantly improve energy-saving effect for the doors and windows curtain wall system.

Stability

Esoleite warm edge spacer meets the test of Dew point, UV radiation resistance and water vapor permeability test according to GB/T1944-2012.

Esoleite warm edge spacer compliance with ROH2011/65EU Environmental Certification standards. Esoleite warm edge spacer’s stainless steel U-dimensional

structure increases the supporting strength of the interval, and it can be a good adhesion of various sealing materials, ensure the air tightness of insulating glass.

As the linear expansion coefficient of stainless steel and glass is very close, it is more effective to ensure the sealing life time of the insulating glass.

Manufacturability

The corner bending can be finished on the existing automatic stainless steel spacer bending machine and any shape can be processed according to customer

demand.The molecular sieve filling is same as the existing aluminum strip and no leakage. This product is well adapt to modern semi-automatic and automated

insulating glass production.

Product specifications and packaging

Type

Width(mm

Height(mm

Length(m

Paper box packing (piece)

Steel rack packing (piece)

9

8.5

6.9

5

420

5040

10

9.5

6.9

5

390

4680

12

11.5

6.9

5

320

3840

14

13.5

6.9

5

280

3360

16

15.5

6.9

5

240

2880

18

17.5

6.9

5

220

2640

20

19.5

6.9

5

200

2400

24

23.5

6.9

5

160

1920
